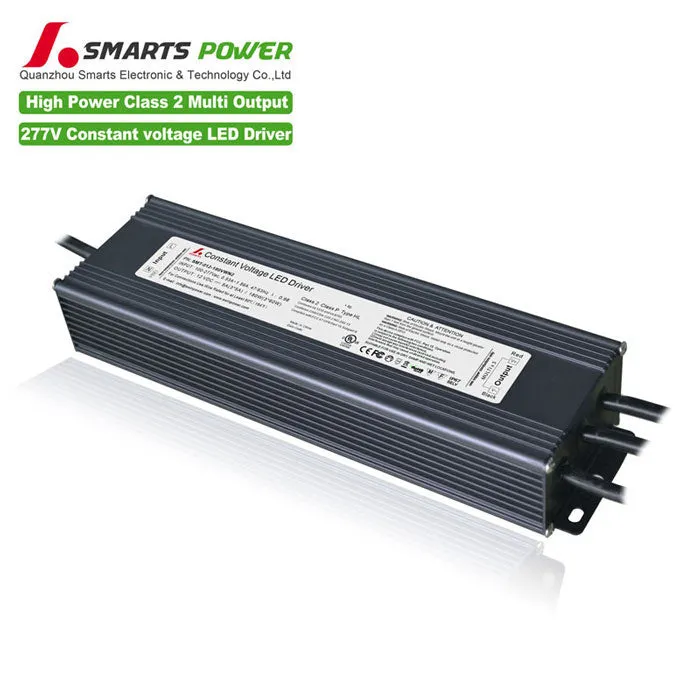

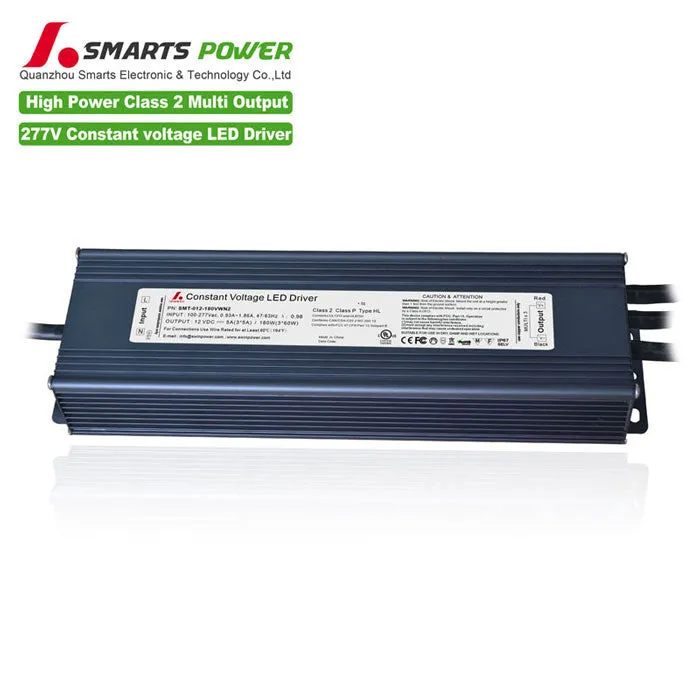

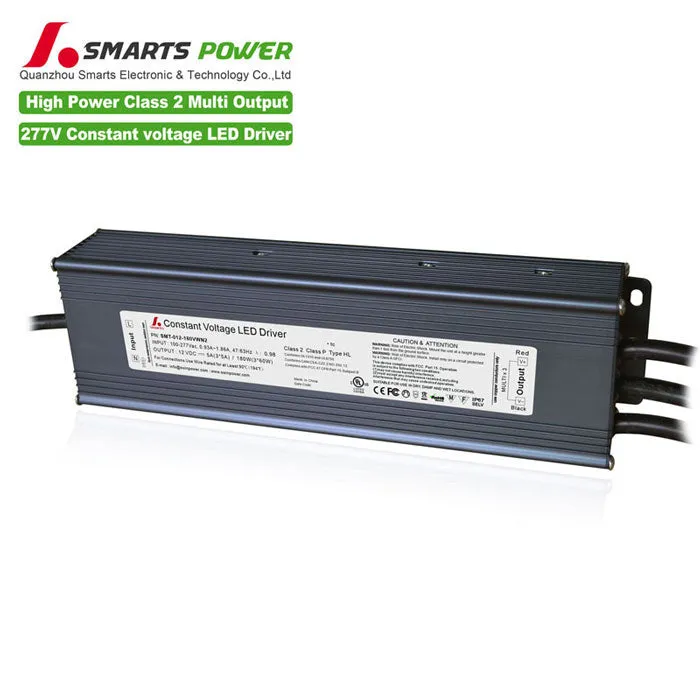

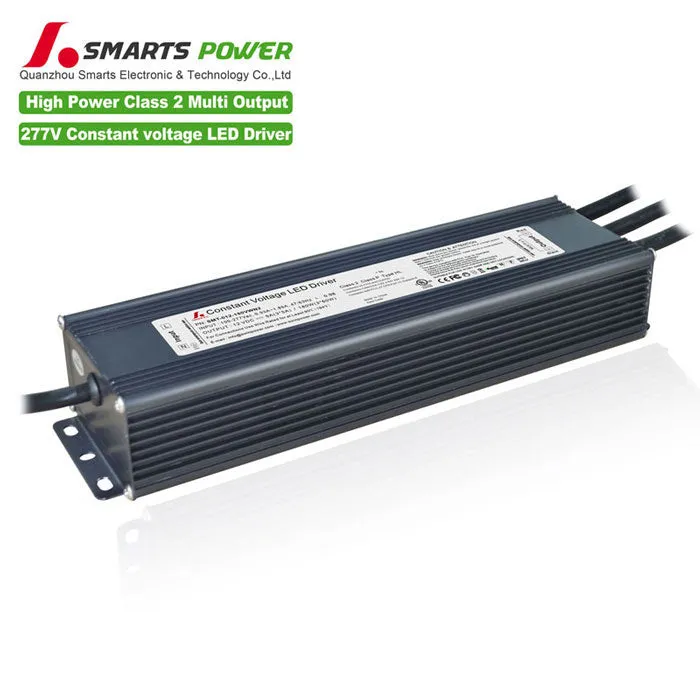

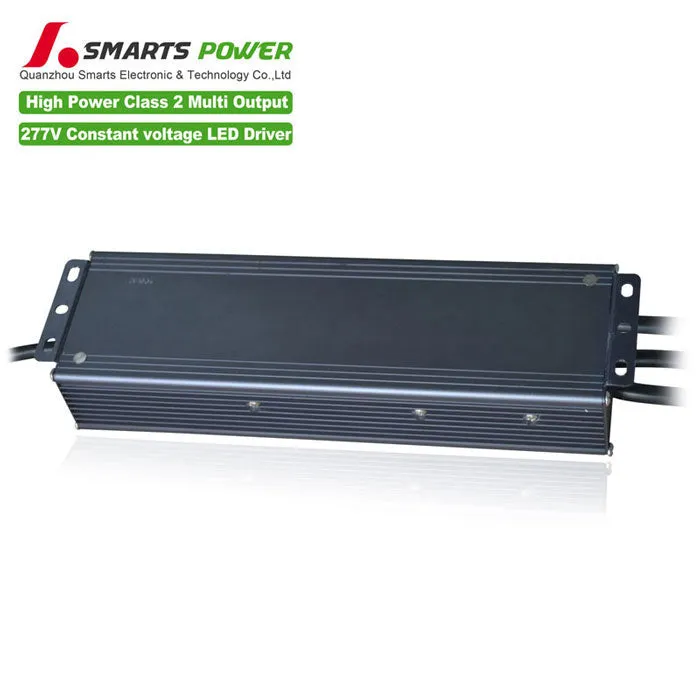

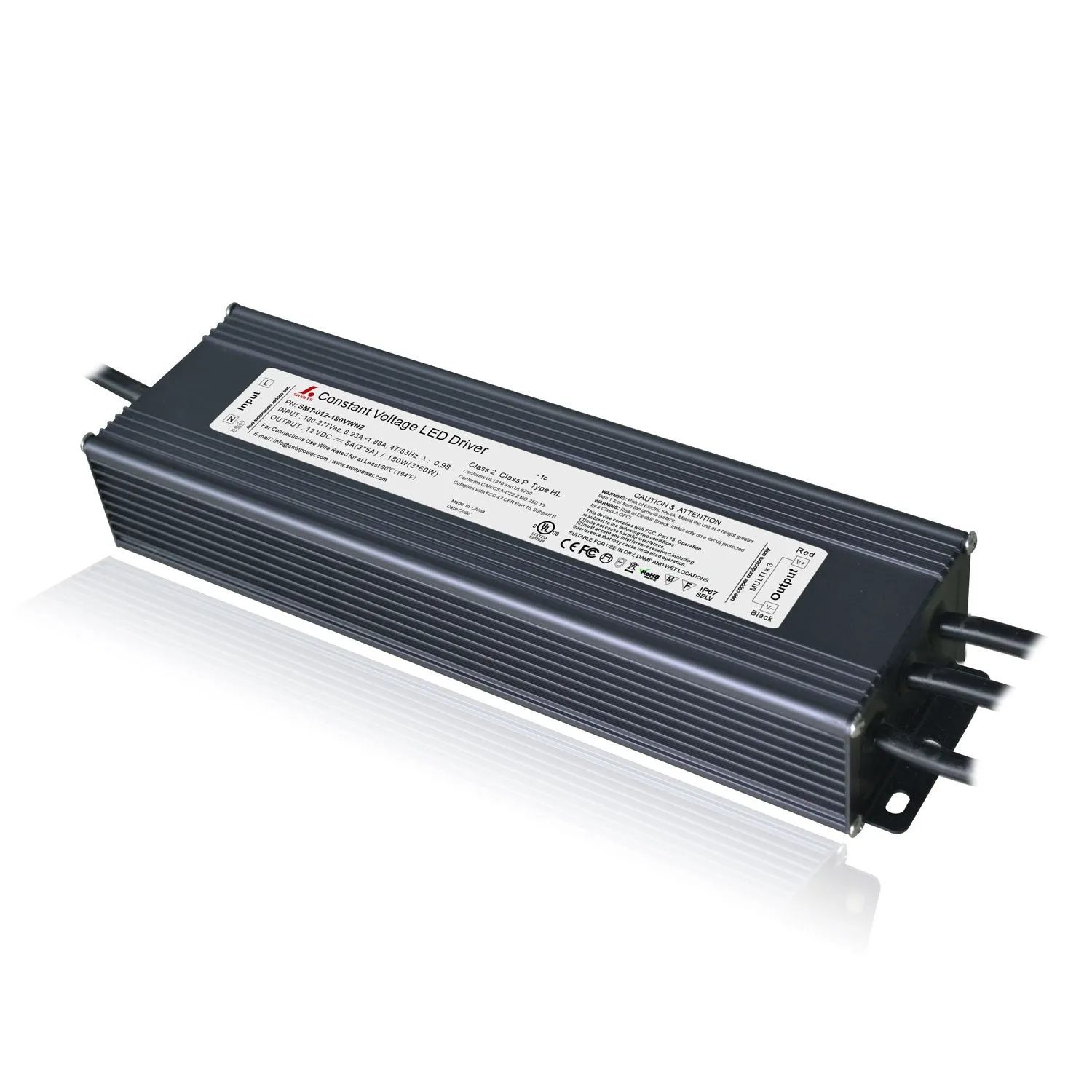

277Vac Aluminum metal housing IP67, LED driver 12vdc has better heat dissipation than done LED street light Driver 180W, and has high compatibility. Class p can directly replace most brand LED power supplies.
| model | SMT-012-180VWN2 | SMT-024-192VWN2 | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ±0.5V | |
| Rated current | 15.0A (3*5A) | 8.0A (2*4A) | |
| Rated power | 180W | 192W | |
| Voltage Tolerance | ±0.5V | ±0.5V | |
| Load Regulation | ±1% | ±1% | |
| Voltage Regulation | ±0.5% | ±0.5% | |
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.94@277VAC | 0.99@120VAC 0.94@277VAC | |
| THD(Typ.)@ full load | <20% | <20% | |
| Efficiency(Typ.)@ full load | 87%@120V 89%@277VAC | 88%@120V 90%@277VAC | |
| AC Current(Max.) | 2.2A@100VAC | 2.3A@100VAC | |
| Inrush Current (Typ.) | 19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC 12.4A (twidth=430us) @277VAC | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode ,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~ 60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~ 80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC 47 CFR Part 15 ,Subpart B | ||
| Others | Net Weight | 1.90Kg | |
| Size | 276*78*47mm (L*W*H) | ||
| packing | 329*279*176mm , 10PCS/ctn | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. | ||
| 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | |||
[Custom Product Tab]
¡öInput wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
¡öOutput cable 2*16AWG,Red" ( ) to LED Positive side ( ) , "Black"(-) to LED Negative side (-).
Note: Three groups output cables for SMT-012-180VWN2 and two groups for SMT-024-192VWN2
¡öPlease make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
