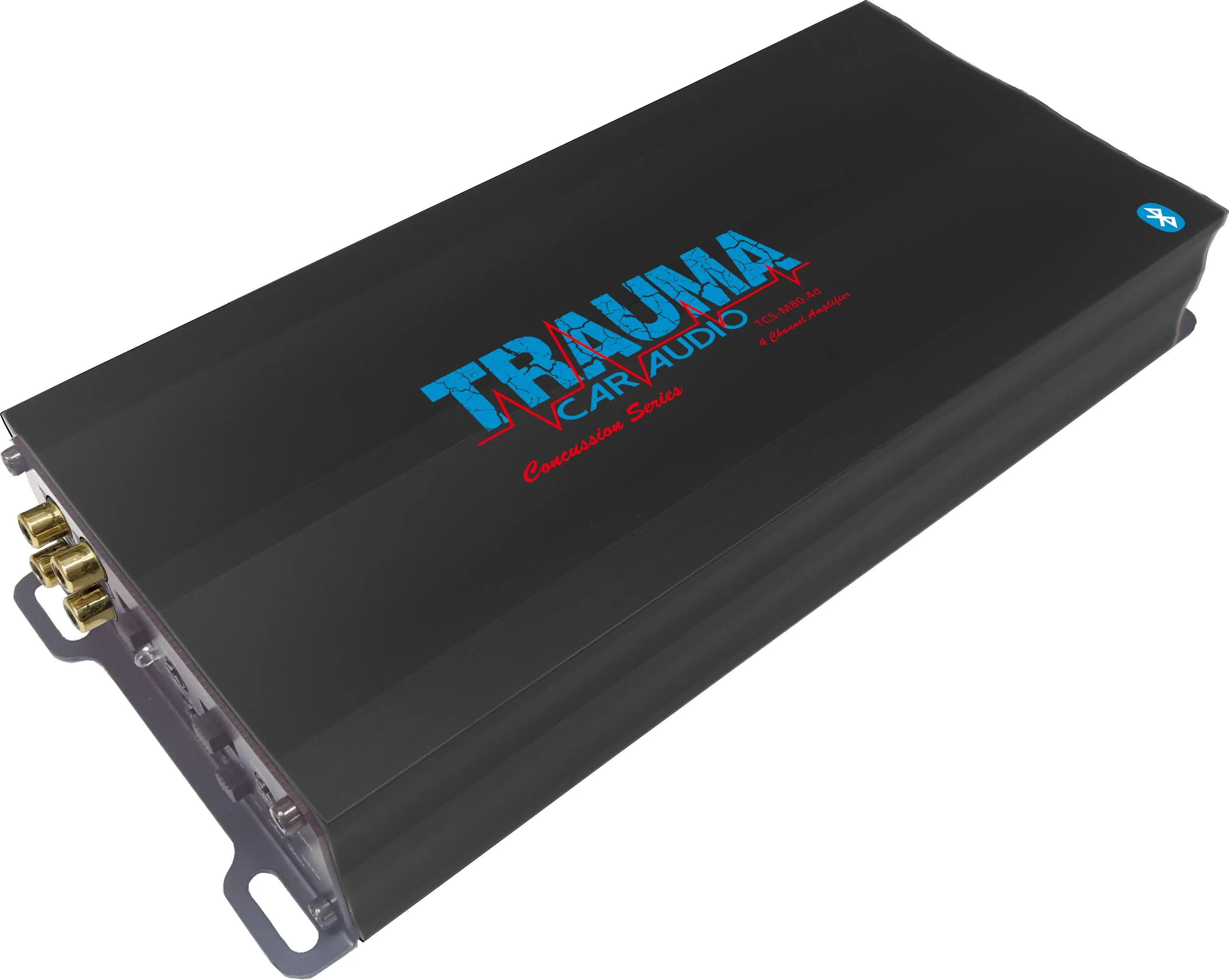

Trauma's high fidelity class d Mini 4 channel amplifier puts out 80 Watts RMS per channel at 4 ohms and 130 Watts RMS per Channel at 2 ohms at 14.4V. It is built with the highest quality components in the industry to give you the power, SQ and reliability you expect with your purchase.
For inquiries about marine grade please email us at [email protected]
FEATURES AND SPECS:
- AMP MEDICS DESIGN
- COMPACT DESING FOR MOTORCYCLE
- CLASS D DESIGN
- 2 OHM STABLE
- FULL RANGE DIGITAL OPERATION
- BRIDGEABLE OUTPUTS
- TRI-MODE CAPABLE
- BLUETOOTH 5.0 RECEIVER
- MOSFET PWM (PULSE WIDTH MODULATED) POWER SUPPLY
- REVERSE POLARITY PROTECTION
- BUILT IN PROTECTION CIRCUITRY
- 12V TO 16V DC
- 80W RMS 4 OHM X 4 @ 14.4V
- 130W RMS 2 OHM X4 @ 14.4V
- 260W RMS (BRIDGED) 4 OHM X 2 @ 14.4v
- SOFT TURN ON CIRCUIT

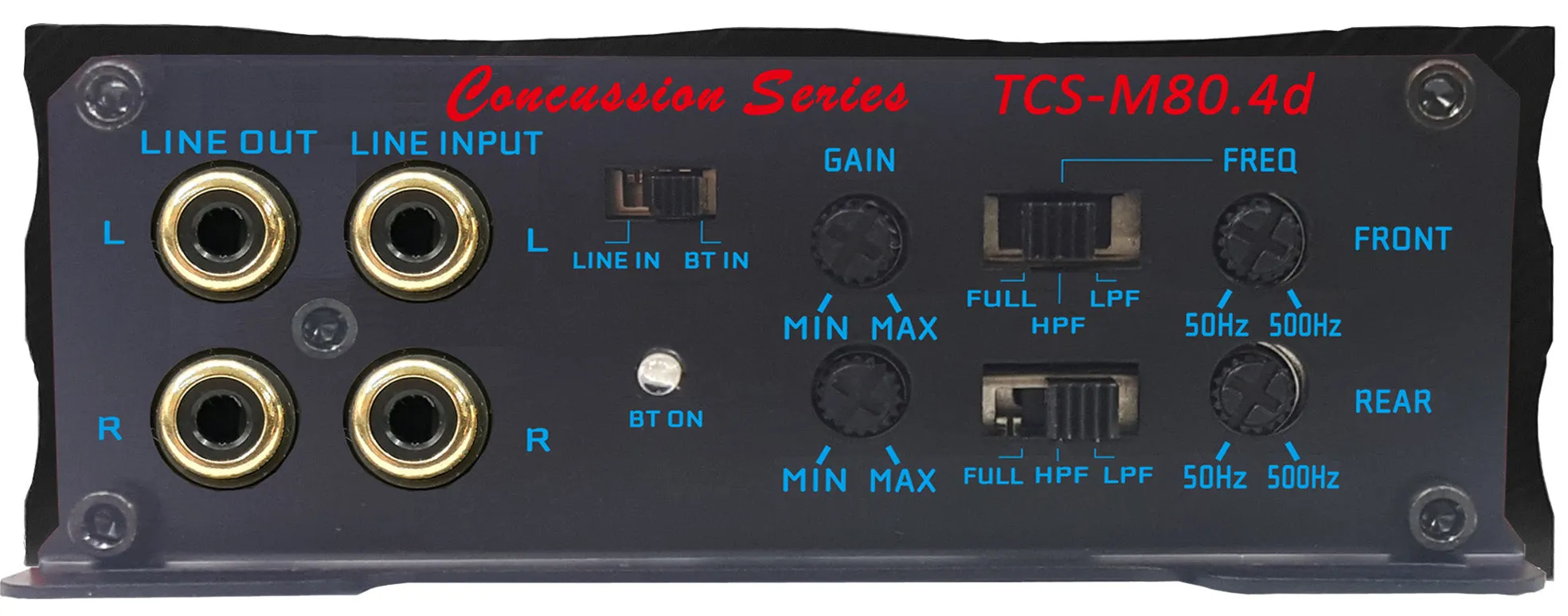

- VARIABLE INPUT GAIN CONTROL
- VARIABLE LOW/HI/FULL PASS FILTER
- VARIABLE LOW/HI PASS FILTER 50HZ-500HZ
- FREQUENCY RESPONSE (-3dB) 10HZ-50k HZ
- SIGNAL TO NOICE RATIO ('A' WTD) 100dB
- CHANNEL SEPARATION 50dB
- DAMPING FACTOR 100
- 4 RCA OUTPUTS PROVIDE FULL RANGE AUDIO
- TIFFANY STYLE RCA JACKS
- LED POWER INDICATOR ( PURPLE )
- PROTECTION INDICATOR ( ORANGE )
- BLUETOOTH INDICATOR ( BLUE )

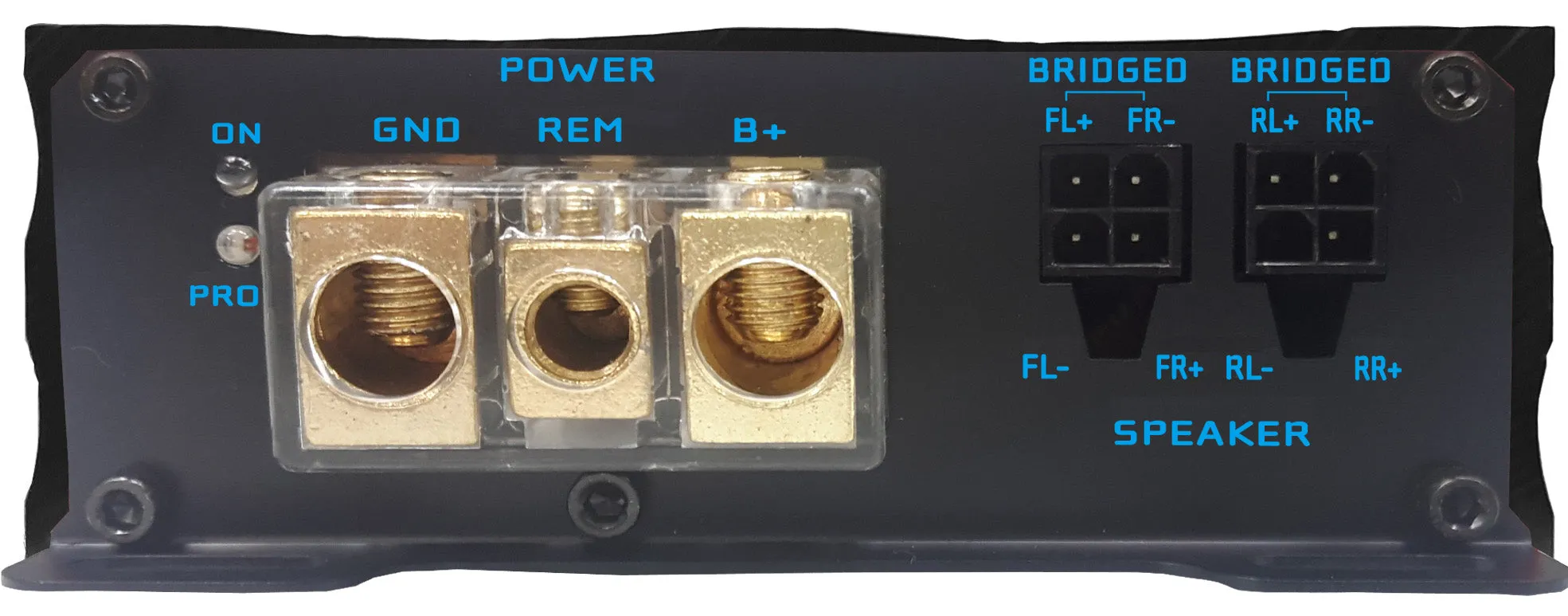

- POWER AND GROUND INPUTS 4/0 GA
- INLINE FUSE RATING: ( REQUIRED ) 70 AMPS
- ADDITIONAL 5MM MOUNTING CLEARANCE FOR IMPROVED AIRFLOW
- LENGTH 9.84”
- WIDTH. 4.13”
- HEIGHT 1.57”
