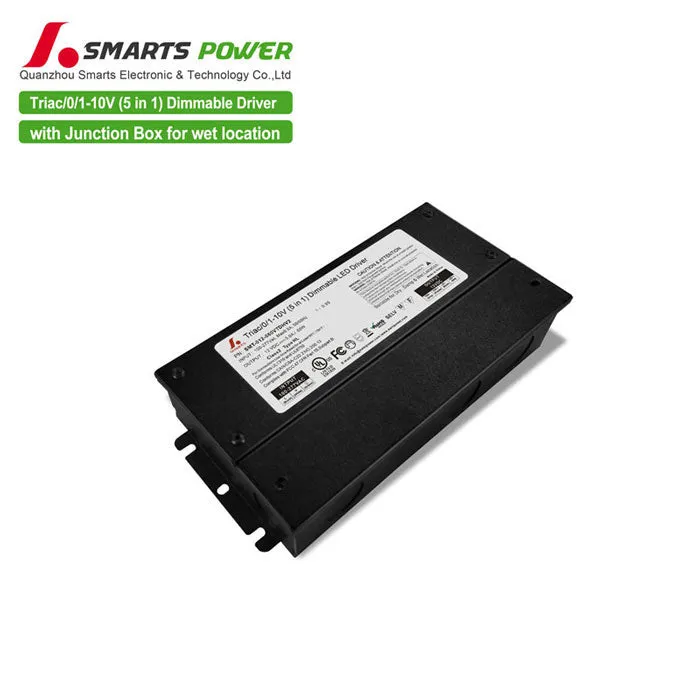

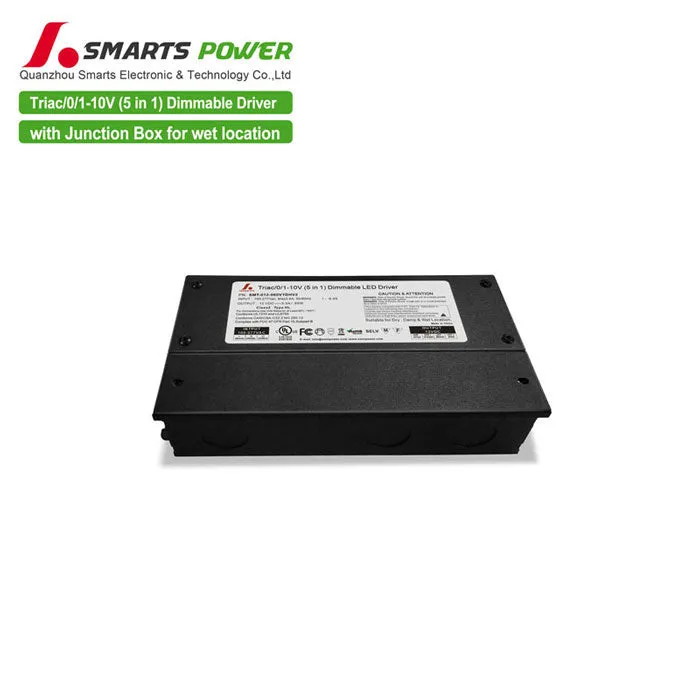

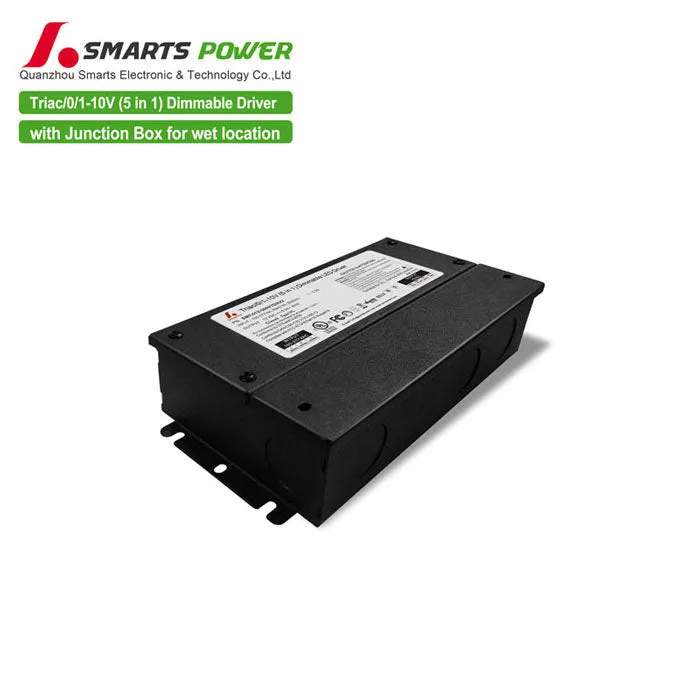

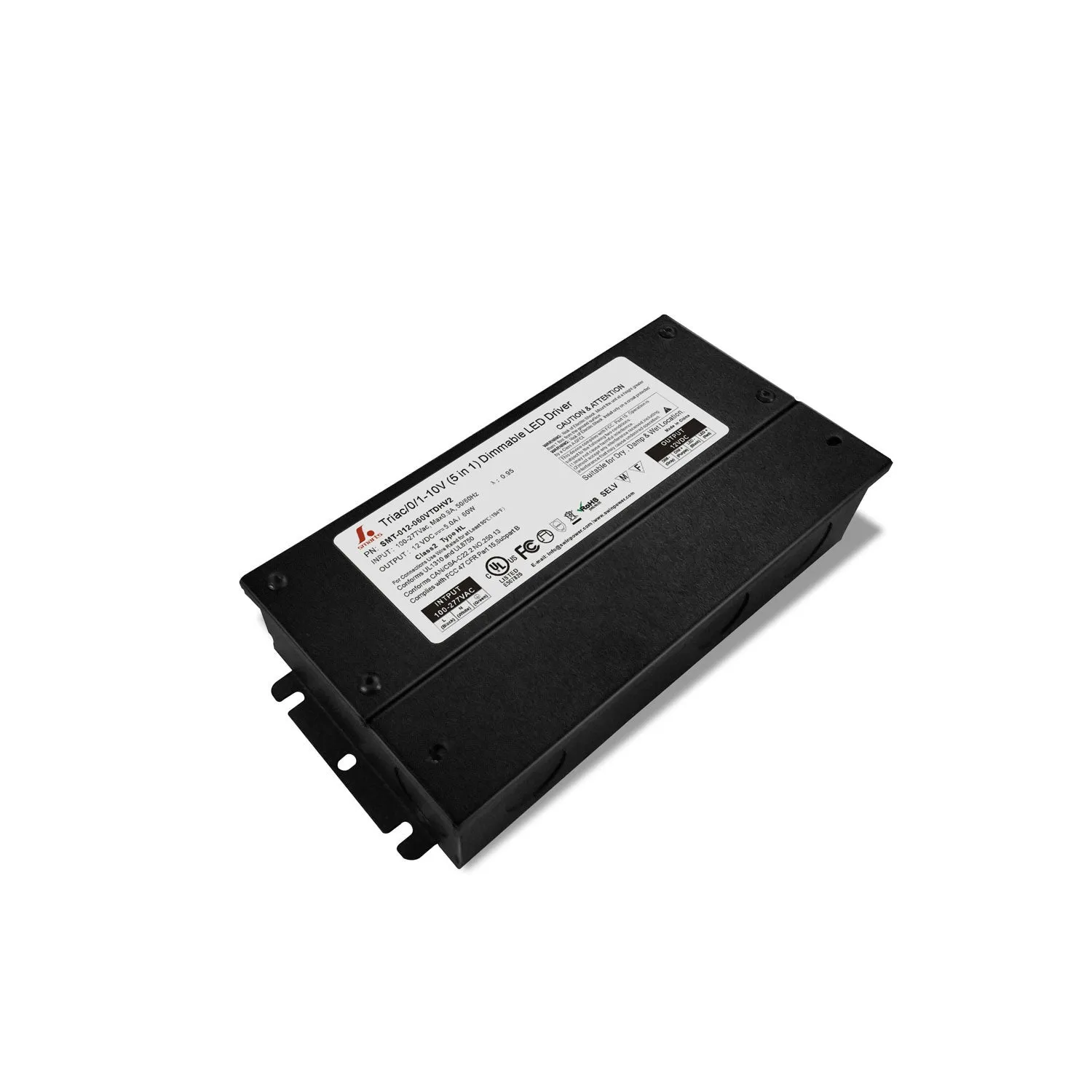

Our SMT-012-060VTDHV2 driver 12v 5a The junction box and the driver power supply are integrated, making the installation convenient and quick. Can be used with 60W LED modules to achieve 0-100% dimming effect without flickering
| model | SMT-012-060VTDHV2 | SMT-024-060VTDHV2 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 5A | 2.5A | |
| Rated Power | 60W | 60W | |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.98@120VAC 0.95@277VAC | 0.98@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | <20% | ||
| Efficiency(Typ.)@ full load | 83% @120Vac 85%@277Vac | 83% @120Vac 84%@277Vac | |
| AC Current(Max.) | 0.5A@100Vac | ||
| Inrush Current (Typ.) | 14A, 50%, 780us @120Vac 15A, 50%, 660us @277Vac | ||
| Leakage current | <0.50mA | ||
| protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~ 60℃ (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~ 80℃,10~95%RH | ||
| TEMP .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | UL8750 UL1310 | |
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | FCC Part 15 B | ||
| Others | Weight | About 1.1Kg | |
| Size | 188*94.5*40mm(L*W*H) | ||
| packing | 10PCS/CTN (L*W*H) | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
[Custom Product Tab]

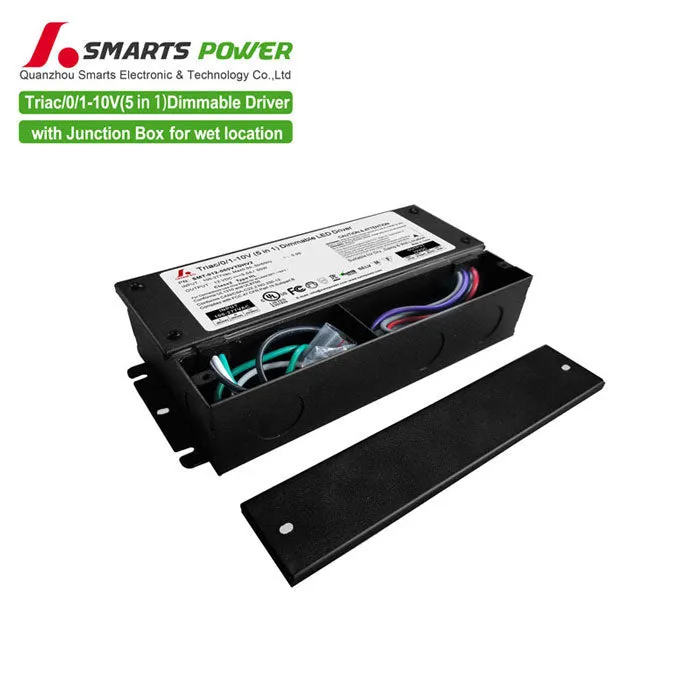

- Inputwire Black and White to be connected?to?AC?L and N ,Green wire go ground,
- Outputwire?Red to LED Positive side ( ) , Black ?to LED Negative side (-).??
- Dimming cable DIM ( ) Purpleto 0/1-10V dimmer signal( ),DIM (-) Grey?to 0/1-10V dimmer signal (-) ?
- Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
¡ö?Connecting Diagram
Using TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase /leading edge ,MLV and?reverse phase /trailing edge ,ELV,TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using 0-10/1-10V dimming
